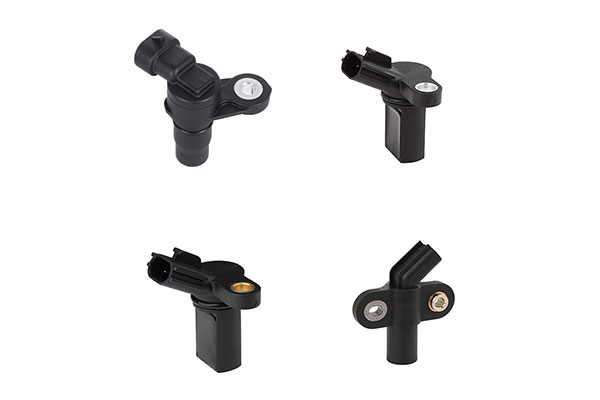

Automotive Position Sensor

Automotive Position Sensor

SDZ automotive position sensor serve in the electronic control unit in car.We supply position measuring how fast the crankshaft is rotating and then the sensor sends the data to the ECU, which determines the optimal fuel injection and ignition timing and the validity of the data collected depends on the position of the crankshaft.

Symptoms of Crankshaft Automotive Position Sensor Failure


  • Engine Vibration


  • Warning light of Checking Engine on


  • Engine Suddenly Stops Running


  • Cylinder Fire


    Symptoms of Crankshaft Position Sensor Failure


Most Required Products that you May Interested

Engine Hose 1: EGR coolant hose

Engine Hose 2: Auto coolant hoses

Engine Hose 3: Car air conditioning tube

Engine Hose 4: Automotive heater hose

Other Engine Parts: Intake manifold for sale

Thermostat 1: Wax type thermostat

Thermostat 2: Map controlled engine cooling thermostat

Thermostat 3: Cooling system thermostat housing


Automotive Position Sensor Applications in Car Industry

Automotive position sensors have found a wide range of applications in the car industry, where they play a pivotal role in enhancing vehicle performance, safety, and driver comfort. Here are some key areas where these sensors are indispensable:


Throttle Position Sensors (TPS): Throttle position sensors are critical for controlling the throttle valve's position in the engine's intake manifold. They provide real-time data on the throttle's position to the engine control unit (ECU), allowing for precise control of air-fuel mixture and engine power. SDZ Automotive Position Sensor Factory's TPS sensors ensure optimal engine performance, improved fuel efficiency, and reduced emissions.


Camshaft Position Sensors (CMP): Camshaft position sensors monitor the position and speed of the camshaft, which is crucial for precise timing of engine events. These sensors enable the ECU to determine when to inject fuel and ignite the spark plug, optimizing engine efficiency and reducing emissions. SDZ Automotive Position Sensor Factory produces reliable CMP sensors that contribute to smoother engine operation and improved fuel economy.


Crankshaft Position Sensors (CKP): Crankshaft position sensors monitor the position and speed of the crankshaft, providing essential data for engine timing and ignition. Accurate CKP sensors ensure proper combustion and prevent engine misfires, contributing to smoother engine performance and reduced exhaust emissions. SDZ Automotive Position Sensor Factory's CKP sensors are known for their precision and reliability.


Transmission Position Sensors: These sensors are used in automatic transmissions to determine the gear position, allowing for smooth shifting and preventing gear engagement errors. SDZ Automotive Position Sensor Factory's transmission position sensors enhance driver comfort and safety by ensuring accurate gear selection and preventing potential transmission damage.


Throttle Pedal Position Sensors: Throttle pedal position sensors monitor the position of the accelerator pedal, providing input to the ECU for throttle control. These sensors play a crucial role in drive-by-wire systems, enhancing throttle response and enabling advanced driver assistance features. SDZ Automotive Position Sensor Factory's throttle pedal position sensors are designed to deliver precise and reliable performance.


Suspension Position Sensors: In modern vehicles with adaptive suspension systems, suspension position sensors monitor the position and movement of each wheel's suspension components. This data is used to adjust the suspension settings in real-time, providing a comfortable ride and optimal handling. SDZ Automotive Position Sensor Factory's suspension position sensors contribute to improved ride quality and vehicle stability.


How does an Automotive Position Sensor Work?

Automotive position sensors are electromechanical devices that work on the principle of translating physical position or movement into electrical signals. They typically consist of three main components:


Automotive Position Sensor Element: This element is responsible for detecting the physical position or movement. Depending on the type of position sensor, it can be a potentiometer, Hall effect sensor, optical sensor, or another technology. For example, a throttle position sensor may use a potentiometer to measure the angle of the throttle valve.


Signal Processing Circuitry: The electrical signals generated by the automotive position sensor element are often weak and require amplification and conditioning. The signal processing circuitry ensures that the output signal is accurate and reliable. It may also include filtering and noise reduction components.


Output Interface: The processed electrical signal is then transmitted to the vehicle's ECU or control module through an output interface. This interface can be analog voltage, digital pulse-width modulation (PWM), or other communication protocols depending on the sensor type and application.


The operation of an automotive position sensor depends on the specific sensor type and its intended purpose. For example, in a throttle position sensor, as the throttle valve opens or closes, the potentiometer's wiper arm moves along a resistive track, changing the electrical resistance. This change in resistance is converted into a voltage signal that corresponds to the throttle's position. The ECU then uses this signal to adjust fuel injection and engine timing for optimal performance.


In the case of Hall effect sensors, they rely on the Hall effect, which is a phenomenon where the voltage across a conductor varies when subjected to a magnetic field. As a magnet moves closer or farther away from the sensor, it generates a magnetic field that affects the voltage across the sensor. This voltage variation is then converted into a position signal.

Our Ways Forward in Future Development Of Automotive Position Sensor

Our Ways Forward in Future Development Of Automotive Position Sensor

Our Ways Forward in Future Development Of Automotive Position Sensor

The trends of sustainability and zero emissions improved safety which significantly affects the role of car automotive position sensors in passenger and commercial vehicles. One devotion of engine parts suppliers is to develop modern safety car automotive position sensors to reduce incidence is our ongoing effort.
